2022-05-13 USRP : DTMF Full Function User's Guide for HS9AWO Kasem Sirisuwan
This is the USRP DTMF Full Function User's Guide.
1st Step] DVSwitch Server + USRP Stand Alone Install on RPi
see below link
https://ds5qdr-dv.tistory.com/333?category=956301
2022-05-01 USRP : Client + DVSwitch Server Stand Alone IMG
Release the integrated version of USRP and DVSwitch Server USRP와 DVSwitch Server 통합버젼을 공개합니다 - USRP Client : V3.60 - DVSwitch Server : V1.6.8 I made IMG file based on..
ds5qdr-dv.tistory.com
USRP Version : 3.61 (if not, please click Github V3.60 button at Server & Ctrl Tab)
2nd Step] Download DTMF execution file
- DTMF Function needs another execution file DTMF.
- Download DTMF file from internet
cd /home/pi/USRP
wget -O DTMF usrp.duckdns.org/DTMF
3rd Step] Edit usrp.ini
- DTMF command must be added at usrp.ini
- Add below command list between [MACROS] and [SERVER] section
[MACROS]
Kill Gateways = *666
TGIF = *TGIF
BM = *BM
INFO = *INFO
TIME = *TIME
TG = *TG
[DTMF]
47 = CH_DN ; connect to 1 step down TG
74 = CH_UP ; connect to 1 step up TG
69 = SV_DN ; Connect to 1 step down Server
96 = SV_UP ; Connect to 1 step up Server
55 = SV_DF ; connect to Default Sever
11 = DMR ; change mode to DMR
12 = DSTAR ; change mode to DSTAR
13 = NXDN ; change mode to NXDN
14 = P25 ; change mode to P25
15 = YSF ; change mode to YSF
99 = DVSW_RBT ; reboot DVSwitch server
88 = DVSW_RST ; restart DVSwitch server
77 = USRP_RST ; restart USRP
66 = USRP_RBT ; reboot USRP
44 = USRP_OFF ; shutdown USRP
00 = UNLINK ; Unlink
[SERVER]
DVS_00 = Default_DVS : DS5QDR : 4500495 : 450049514 : 127.0.0.1 : 50000 : 50000 :

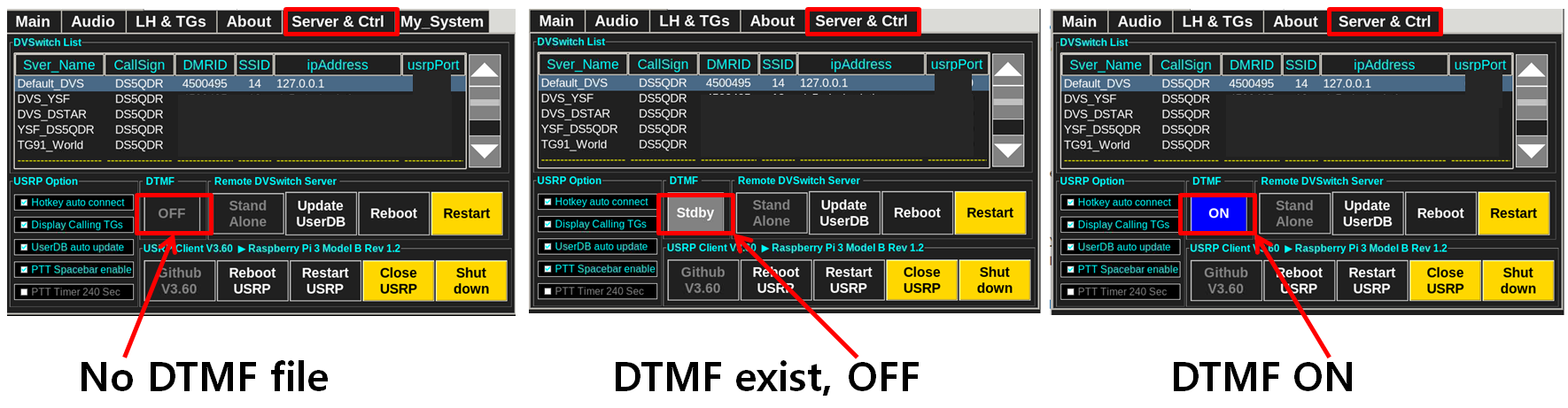

4th Step] Enable / Disable DTMF by click DTMF button
